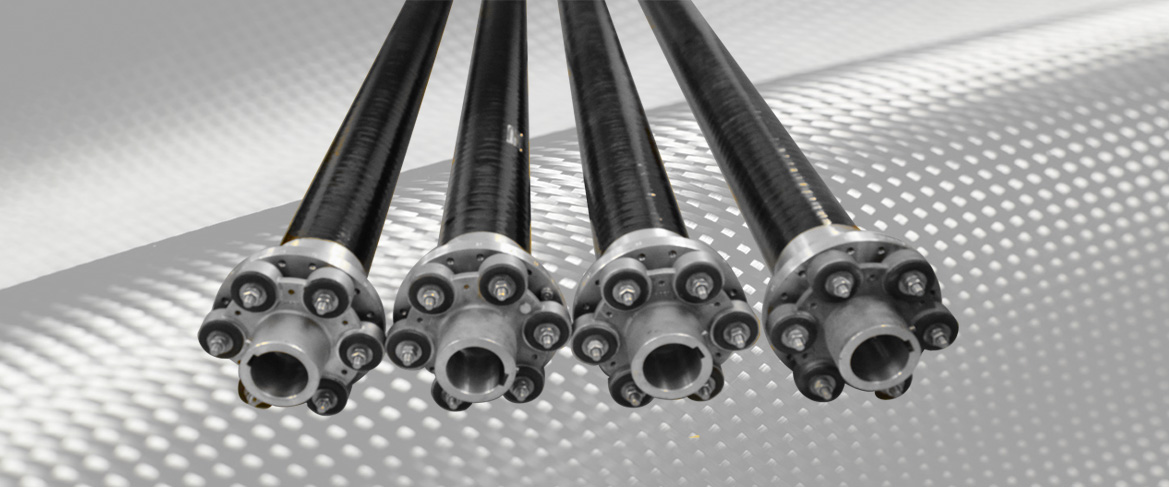

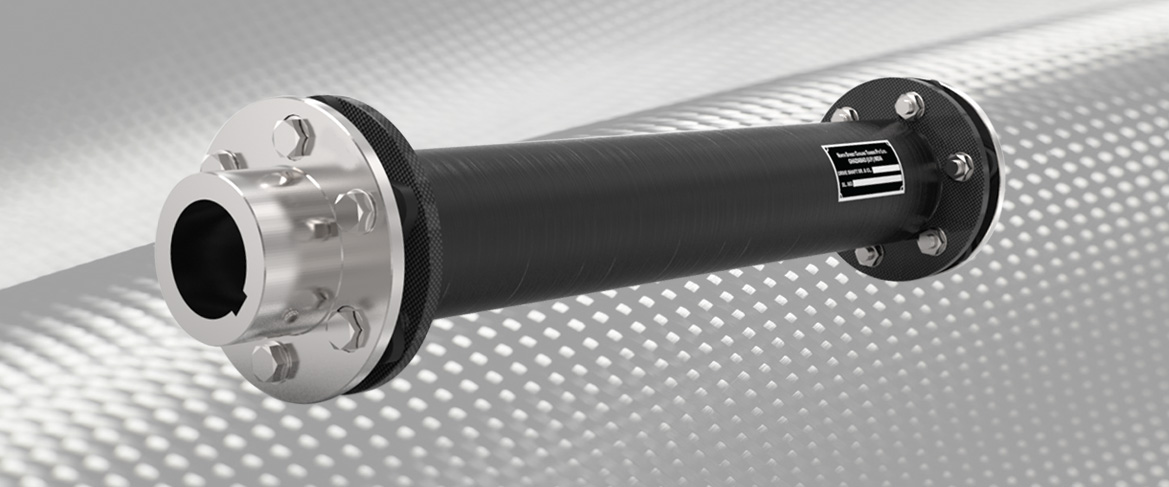

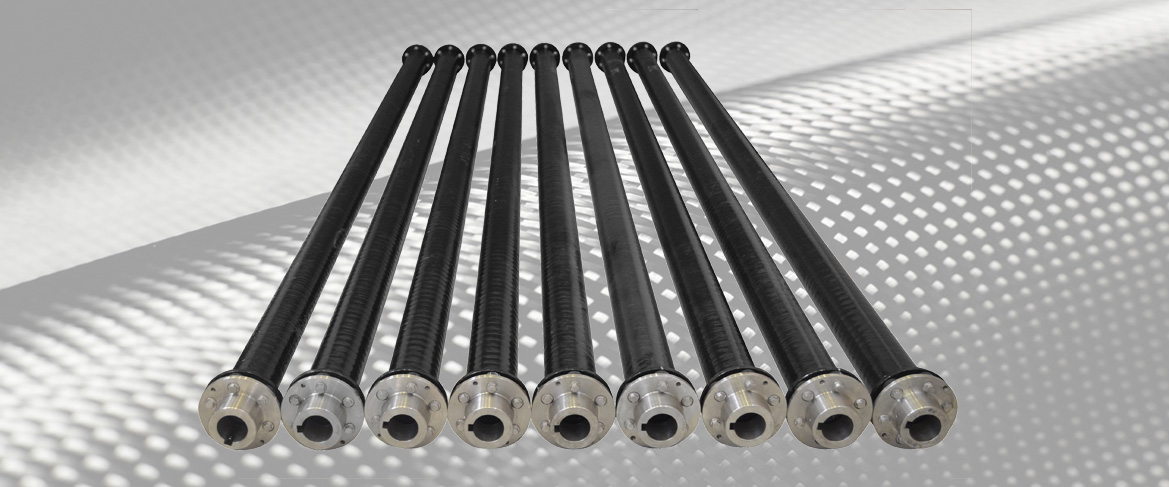

Carbon Fiber Drive Shafts For Cooling Tower

previous arrowprevious arrow
next arrownext arrow
Slider

About CF Drive Shaft

Our drive shafts are available in galvanized steel, stainless steel 304, 316 and carbon fiber, designed to transmit high torque ratings for cooling tower applications. They are tubular, single-span and flexible to compensate for any misalignment.

All drive shafts and their components are completely interchangeable and designed as per ANSI/AGMA 9000 – D11.

Key Features & Adventages

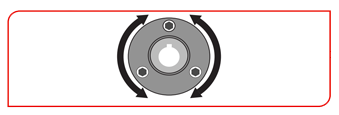

Independent of Direction Of Rotation

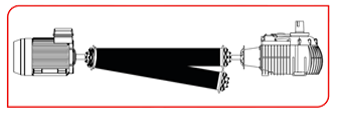

Higher Misalignment Capabilities

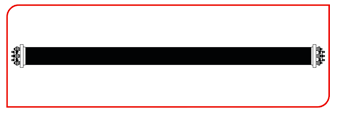

Long Spans

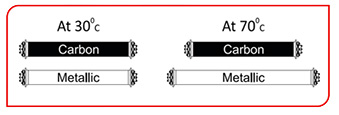

Dimensional Stability

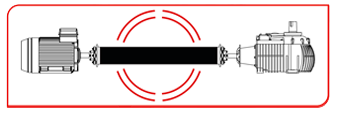

Smoother Operation

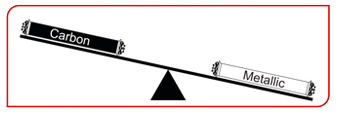

Light Weight

Download Brochures

Gallery

Whats is carbon fiber?

Carbon fiber are continuous filaments that are high performance reinforcements for composites.

They are about 10 times stronger and 5 times lighter than steel and about 1.5 times lighter than aluminum.

The Various Model That We Offer

MODELS

Tube Size

Max. DBSE
@ 1500rpm mm (in)

Max. DBSE
@1800rpm mm (in)

Continuous Torque
@ 1.0 S.F Nm (lb-in)

Continuous Torque
@2.0 S.F Nm (lb-in)

Peak Overload Torque Nm (lb-in)

NSCF 50

2

2975 (117.13)

2730 (107.48)

610 (5399)

305 (2700)

915 (8098)

NSCF 75

3

2

3586(141.18)

3750(147.63)

3295(129.72)

3350(131.88)

1090(9647)

545(4823)

1635(14471)

NSCF 100

4

5

6

7

8

3995(157.28)

4470(175.98)

4675(184.06)

5370(211.42)

5700(224.41)

3698(145.59)

4180(164.56)

4290(168.89)

4950(194.88)

5265(207.28)

1640(14515)

820(7257)

2460(21773)

NSCF 150

4

5

6

7

8

3995(157.28)

4470(175.98)

4675(184.06)

5370(211.42)

5700(224.41)

3698(145.59)

4180(164.56)

4290(168.89)

4950(194.88)

5265(207.28)

2850(25225)

1425(12612)

4275(37837)

NSCF 150

6

7

8

10

4675(184.06)

5370(211.42)

5700(224.41)

7000(275.59)

4290(168.89)

4950(194.88)

5265(207.28)

6481(255.12)

4235(37483)

2118(18746)

6352(56220)
